Enquanto estamos discutindo no Brasil a viabilidade do 4K, formato de entregas, capacidade de armazenamento, e trabalhando para um workflow completo em ultra definição, a RED está indo além, com um sensor de 8K, chamado de MONSTRO.

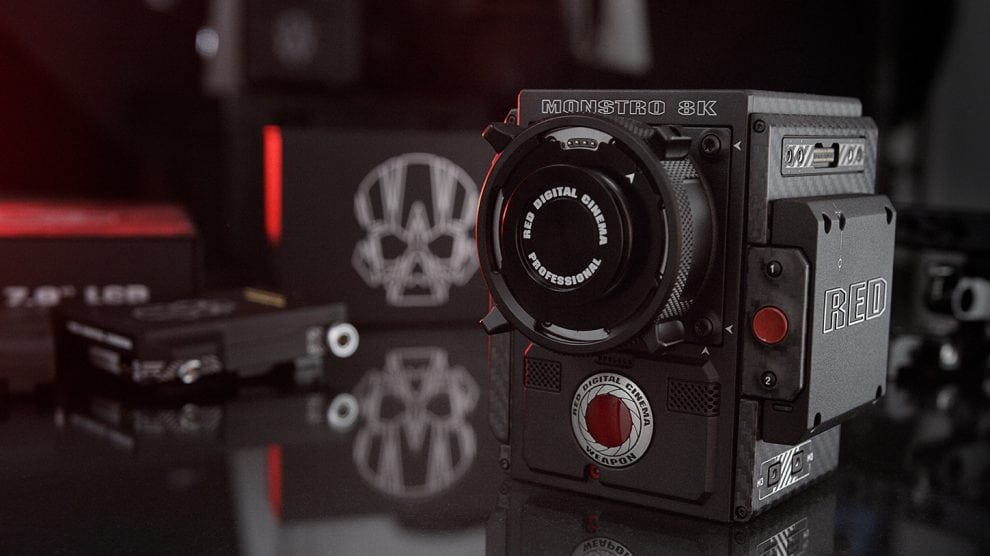

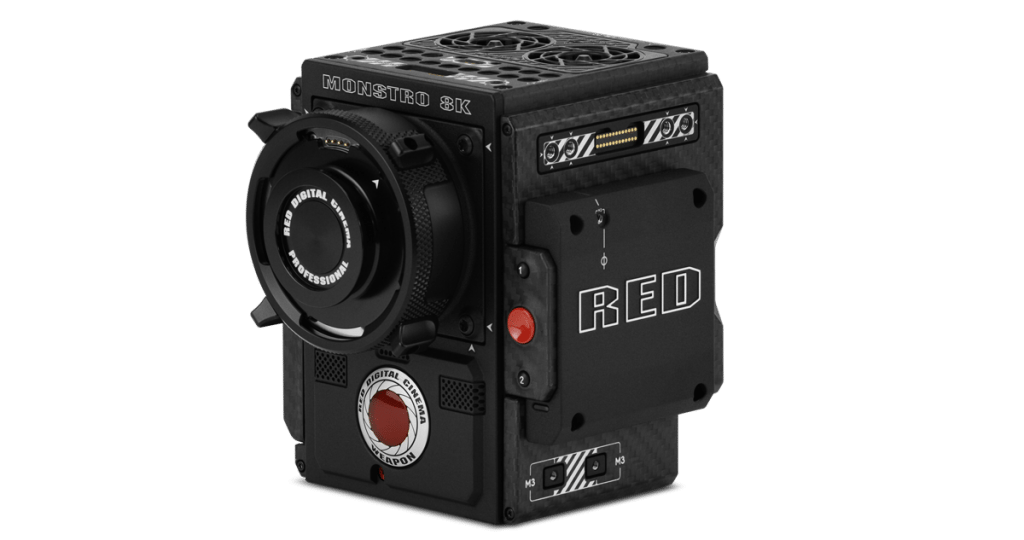

Isto mesmo, o sensor MONSTRO 8K VV vai além do full frame, que são as grandes novidades a Canon Cinema, Blackmagic ou Arri; este sensor captura 8K em formato full até 60fps e 35.4 Megapixel still. Vamos então a alguns aspectos técnico da câmera WEAPON BRAIN que vem com este sensor 8K.
| Tipo do sensor | MONSTRO 35.4 Megapixel CMOS |
| Pixels Efetivos | 8192 × 4320 |
| Tamanho do Sensor | 40.96 mm x 21.60 mm (Diagonal: 46.31 mm) |
| DYNAMICRANGE | 17+ stops |
| MAX FRAMERATES1 | 60 fps at 8K Full Format (8192 × 4320), 75 fps at 8K 2.4:1 (8192 × 3456)
60 fps at 7K Full Format (7168 × 3780), 75 fps at 7K 2.4:1 (7168 × 3024) 75 fps at 6K Full Format (6144 × 3240), 100 fps at 6K 2.4:1 (6144 × 2592) 96 fps at 5K Full Format (5120 × 2700), 120 fps at 5K 2.4:1 (5120 × 2160) 120 fps at 4K Full Format (4096 × 2160), 150 fps at 4K 2.4:1 (4096 × 1728) 150 fps at 3K Full Format (3072 × 1620), 200 fps at 3K 2.4:1 (3072 × 1296) 240 fps at 2K Full Format (2048 × 1080), 300 fps at 2K 2.4:1 (2048 × 864) |
| MAX DATARATES | Up to 300 MB/s using RED MINI-MAG (480GB & 960GB) Up to 225 MB/s using RED MINI-MAG (120GB & 240GB) |
| PLAYBACKFRAME RATES (PROJECTTIMEBASE) |
23.98, 24, 25, 29.97, 47.95, 48, 50, 59.94, 60 fps, all resolutions |
| REDCODESETTINGS RANGE FROM2:1 UP TO 22:11 |
5:1 REDCODE for 8K Full Format (8192 × 4320) at 24 fps
12:1 REDCODE for 8K Full Format (8192 × 4320) at 60 fps 2:1 REDCODE for 4K Full Format (4096 × 2160) at 24 fps 3:1 REDCODE for 4K Full Format (4096 × 2160) at 60 fps |
| REDCODE RAW ACQUISITIONFORMATS2 |
8K Full Format (8192 × 4320), 2:1, 2.4:1, 16:9, 14:9, 8:9, 3:2, 6:5, 4:1, 8:1, and Ana 2x, 1.3x, 1.25x
7K Full Format (7168 × 3780), 2:1, 2.4:1, 16:9, 8:9, 6:5, 4:1, 8:1, and Ana 2x, 1.3x 6K Full Format (6144 × 3240), 2:1, 2.4:1, 16:9, 8:9, 3:2, 4:3, 6:5, 4:1, 8:1, and Ana 2x, 1.3x, 1.25x 5K Full Format (5120 × 2700), 2:1, 2.4:1, 16:9, 8:9, 6:5, 4:1, 8:1, and Ana 2x, 1.3x 4K Full Format (4096 × 2160), 2:1, 2.4:1, 16:9, 8:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, 1:1, and Ana 2x, 1.3x 3K Full Format (3072 × 1620), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x 2K Full Format (2048 × 1080), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x |
| APPLE PRORES | ProRes 422 HQ, ProRes 422 and ProRes 422 LT at 4K (4096 × 2160) up to 29.97 fps ProRes 4444 XQ and ProRes 4444 at 2K (2048 × 1080) up to 120 fps ProRes 422 HQ, ProRes 422 and ProRes 422 LT at 2K (2048 × 1080) up to 120 fps |
| AVID CODECS3 | DNxHR HQX at 4K (4096 × 2160) 12-bit up to 29.97 fps DNxHR HQ, SQ and LB at 4K (4096 × 2160) 8-bit up to 29.97 fps DNxHR 444 at 2K (2048 × 1080) 12-bit up to 120 fps DNxHD 444 and HQX (1920 × 1080) 10-bit up to 120 fps DNxHD HQ, SQ and LB (1920 × 1080) 8-bit up to 120 fps |
| CONSTRUÇÃO | Carbon Fiber, Magnesium, and Aluminum Alloy |
| PESO | 3.3 lbs (BRAIN with Integrated Media Bay) |
| REMOTE CONTROL | Integrado R.C.P. WiFi antenna Ethernet, RS232, and GPI Trigger with DSMC2 expander module |
| SAÍDA DE MONITOR | 3G-SDI (HD-SDI) and HDMI with DSMC2 expander module 1080p RGB or 4:2:2, 720p RGB or 4:2:2 480p RGB or 4:2:2 (HDMI only) SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio |
| OPÇÕES PARA MONITOR | DSMC2 RED Touch 4.7″ LCD, DSMC2 RED Touch 7.0″ LCD and DSMC2 RED EVF(OLED) with cable-free connection. RED Touch 9.0″ LCD, RED Touch 7.0″ LCD, RED Touch 5.0″ LCD, RED PRO 7″ LCD, BOMB EVF (OLED) and BOMB EVF (LCOS) compatible with DSMC2 LEMO Adaptor A and LCD/EVF cable. |
| REDCINE-X PRO DELIVERY FORMATS |
4K: DPX, TIFF, OpenEXR (.RED via RRencode plugin) 2K: DPX, TIFF, OpenEXR (.RED via RRencode plugin) 1080p RGB 4:2:2, 720p 4:2:2 : QuickTime, JPEG, AVID AAF, MXF 1080p 4:2:0, 720p 4:2:0 : H.264, .MP4 |
| COMPATIBILIDADE COM SOFTWARES DE EDIÇÃO | Adobe Premiere Pro, AVID Media Composer, DaVinci Resolve, Edius Pro, Final Cut Pro, Vegas Pro |
O preço é bem salgado para nossa realidade brasileira, por volta de $80 mil dólares, e segundo alguns especialistas, o dynamic range pode não chegar aos 17 stops, pois esta promessa já foi feita em outros modelos e não se cumpriu.
E para editar neste formato? Será que só em proxy? Ou teremos máquinas para aguentar este workflow?
